Step 1: Battery dialing, as shown in the figure below



Step 2: battery parallel communication


If you have two or more battery packs in parallel, insert the RJ 45 battery parallelcommunication wire into the RS485 hole of the battery



Step 3: Connect the upper computer / Bluetooth selection protocol (how toconnect the upper computer, please check the operation instructions)


01. Setup of the upper computer


a. Select the Language -English



b. Enter the Parallel group display interface and select the VICTRON protocol



02. Bluetooth Settings

a. Enter the Bluetooth-Settings-inverter configuration



b.Enter the password: 888888



c. Select the VICTRON in the CAN



d. Click Settings, and you will hear "bee"after the success



Step 4: Set inverter end crystal head, only suitable for VICTRON inverter


Battery: 4H5L (usually we set it up in advance)

Inverter: 7H8L(as shown below)

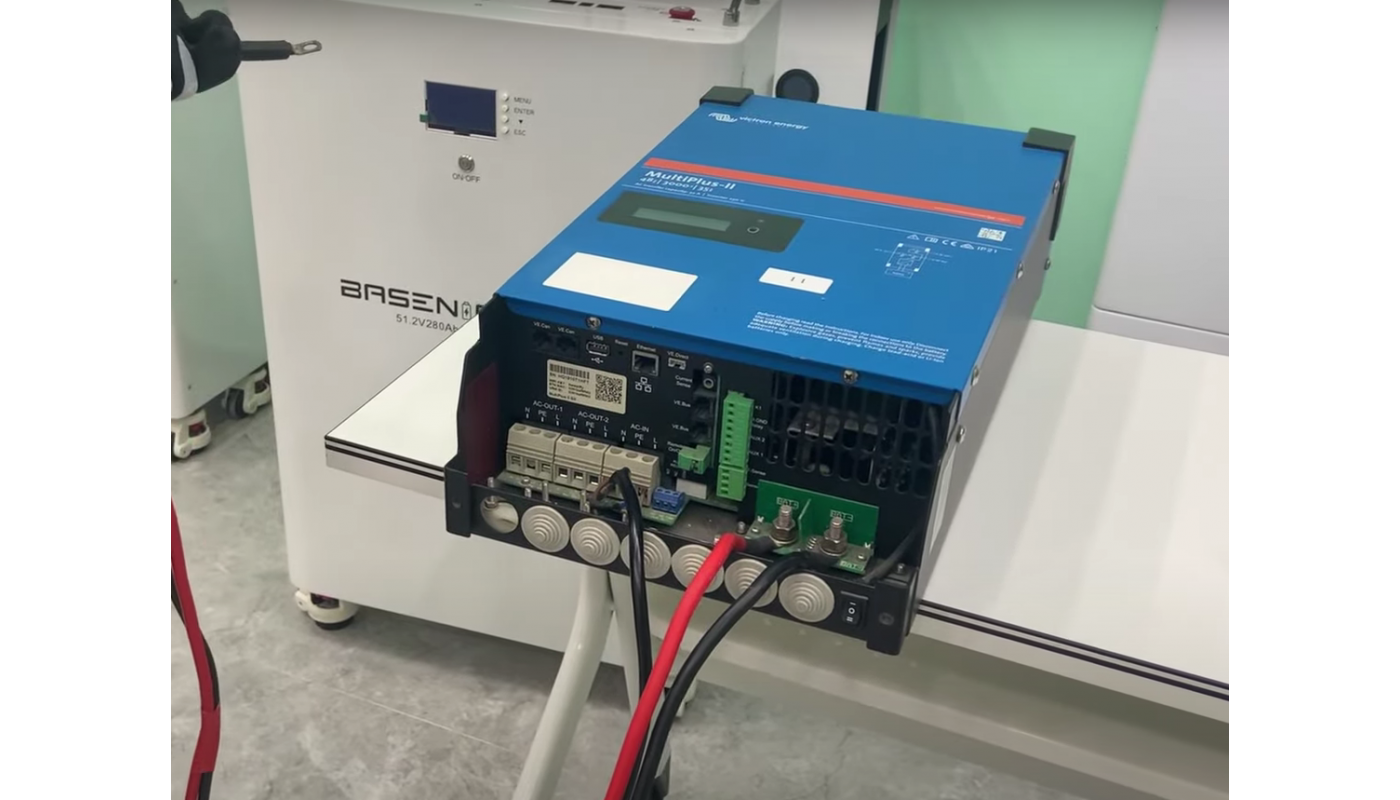

Step 5: Connect the inverter communication line


01. Battery end: Insert into the CAN port



02. Inverter end insertion: VE.




Step 6: Successful communication



You can also refer to our YOUTUBE VICTRON inverter connection video: https://www.youtube.com/watch?v=fGhLb6QEAZk
